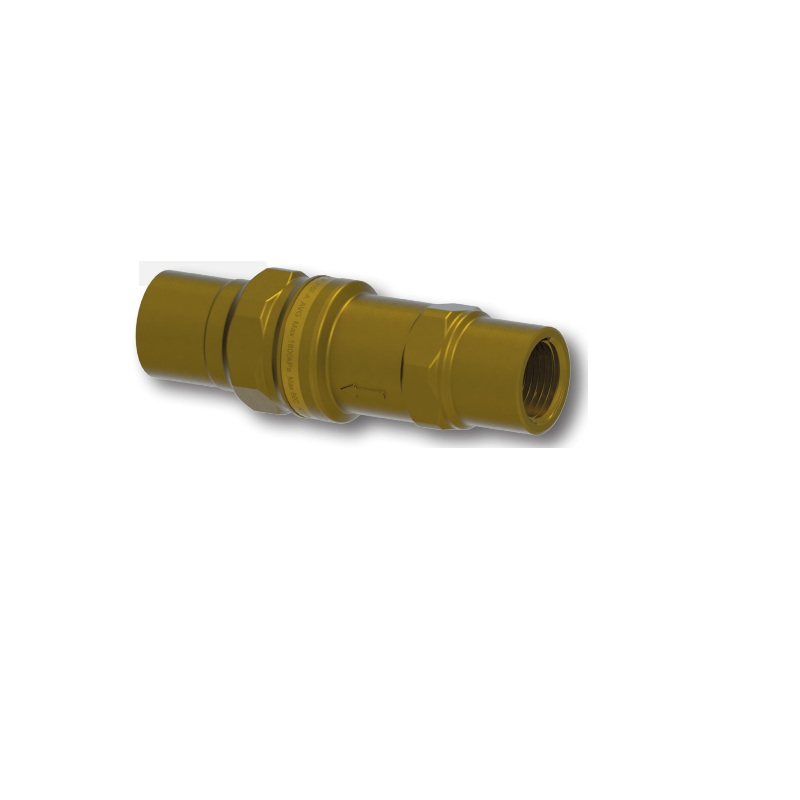

AVG Tri-Set Selectable Pressure Limiting Valve PLV15F-TRISET

Product Description

AVG Tri-Set Selectable Pressure Limiting Valve PLV15C-TRISET

The “TRI-SET“ range is available in 15mm and 20mm compression and 15mm and 20mm female connections which incorporate three selectable pressure settings within the one compact valve, 350, 500 and 600kPa.
The valve is manufactured from durable DR brass and the internal waterways have been engineered to give optimum flow characteristics.
Valve body: DZR brass
Internal cartridge: DZR brass
Valve seat: 316 Stainless steel
Pressure spring: Stainless steel
“ O “ rings: EPDM
Max. Inlet Pressure: 1800 kPA
Max. Operating Temp: 80°C
Selectable Pressure Settings 350 kPa, 500kPa and 600kPa.
Supplied factory preset at 500kPa
PLV15F-TRISET – 15mm F x F

Images are for illustration purposes only

View AVG Tri-Set Selectable Pressure Limiting Valve PLV15C-TRISET specs at AVG Spec Link
